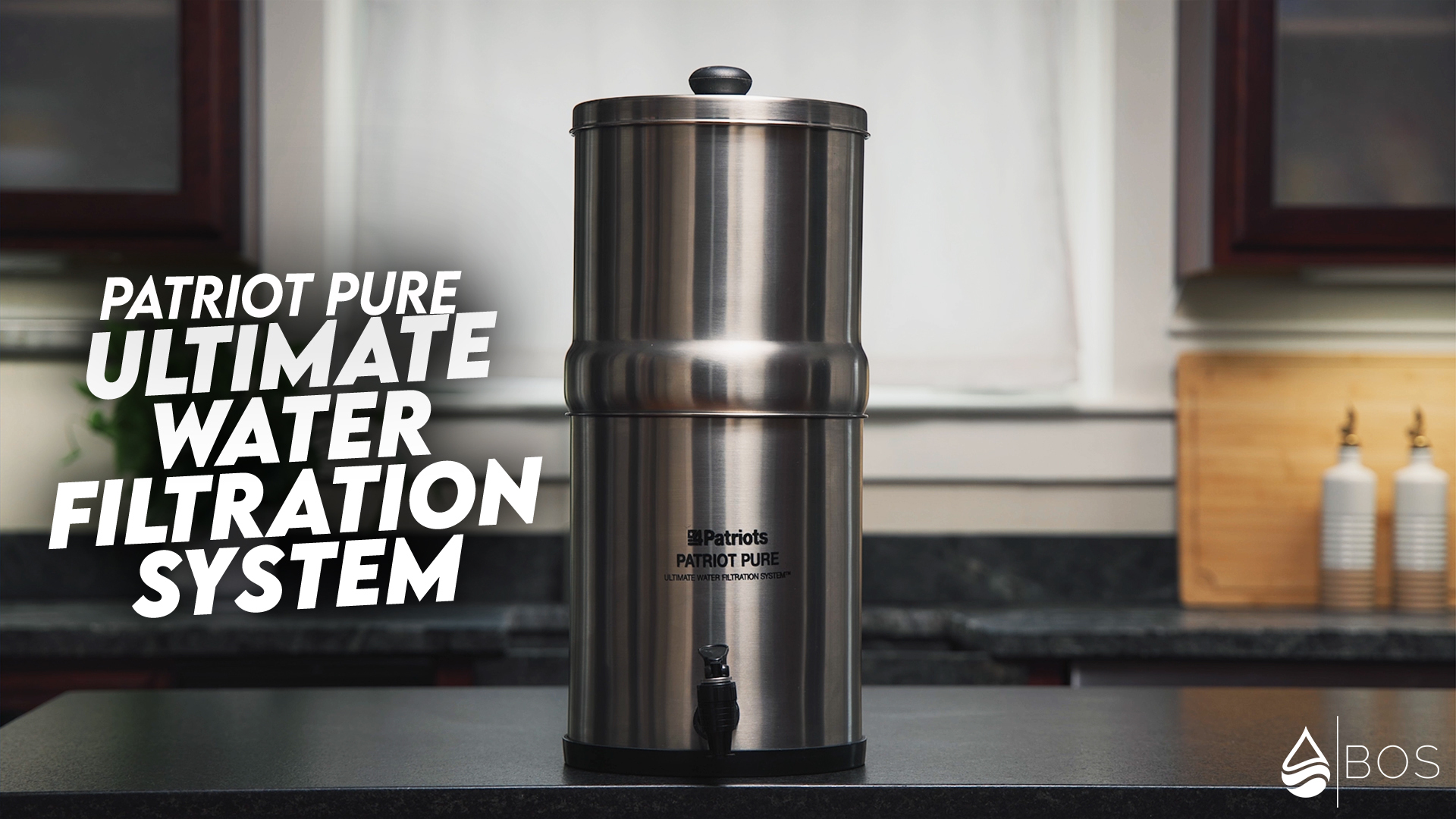

Patriot Pure Ultimate Water Filtration System Review: Lab & Hands-On Test

Full Analysis of the Patriot Pure Ultimate Water Filtration System (Old Model)

Filtration: 4.26/5.00

The Patriot Pure Ultimate Water Filtration System scored 4.26/5.00 for filtration. How? Most importantly, it achieved solid results in our 2026 lab testing and the filtered water tasted and smelled perfectly clean. Plus, the system is well-covered by NSF/ANSI certifications for contaminant reduction and has extensive third-party testing to 100-400% filter life.

1. Lab Results: 4.49/5.00 (2026)

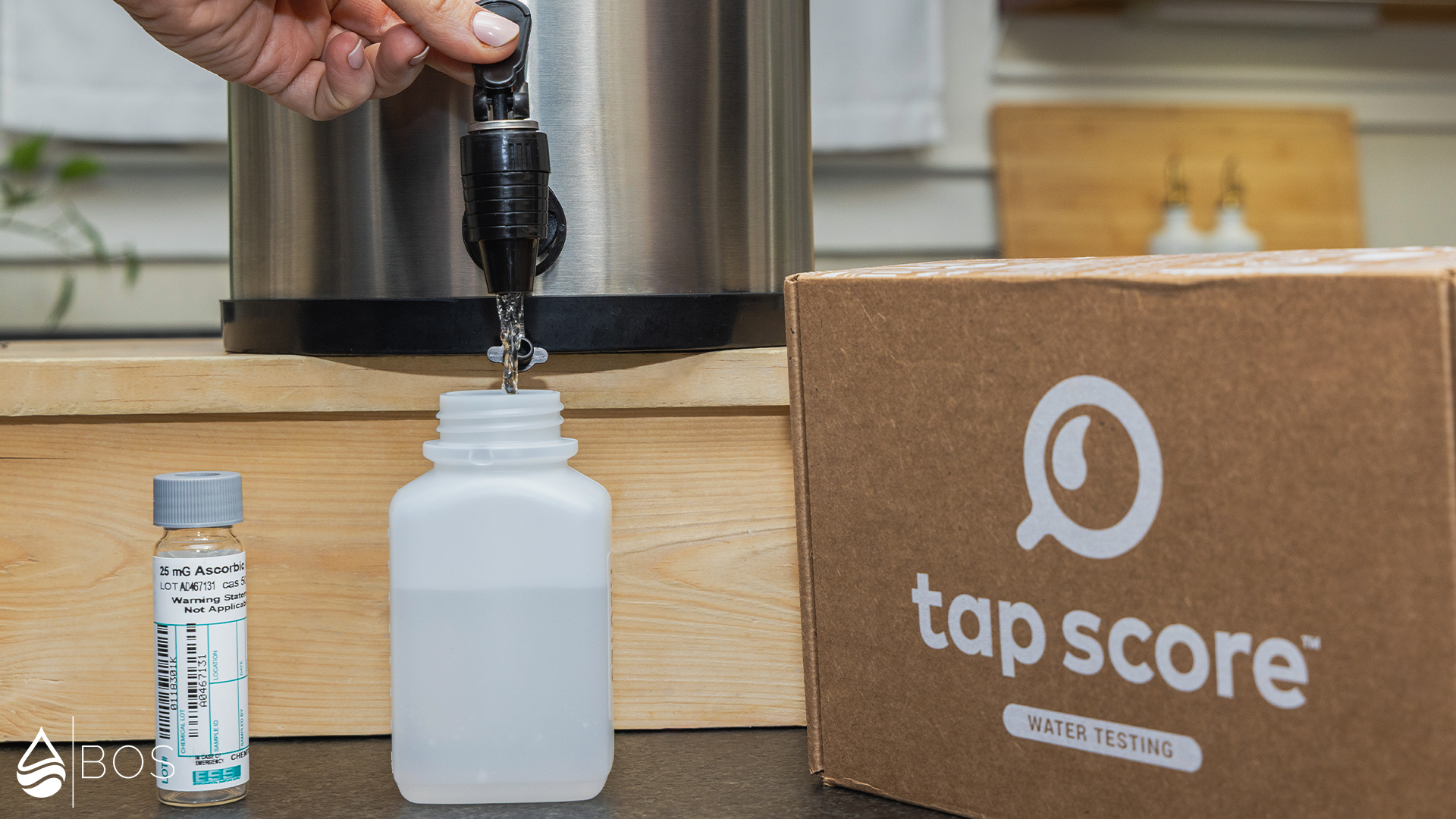

In our lab tests comparing an unfiltered and a filtered tap water sample, the Patriot Pure Ultimate could remove 9 undesirable impurities and contaminants to below the minimum detection level (so essentially to 100%): chlorine, bromodichloromethane, dibromochloromethane, chloroform, copper, iron, manganese, nitrate, and fluoride.

The following substances remained in our water:

• Barium was reduced by a very high 98%.
• Boron was also reduced by a very high 94%.
• Strontium increased by 91%, which is unlikely to represent natural fluctuations and may suggest potential leaching. However, at 0.252 ppm, it was still ~6x lower than the strictest health guideline (1.5 ppm).

Lab Results Chart

Non-Potable Water

We have not yet tested the Patriot Pure with a non-potable water source. This evaluation is planned, and the page will be updated as soon as testing is completed and results are available.

2. NSF/ANSI Certifications and Other Test Data

The Patriot Pure is certified by the NSF for the reduction of 75 important contaminants against NSF/ANSI standards 42, 53, and 401. These certifications include chlorine (99.99%), arsenic V (97.60-99.90%), cadmium (93.80-98.00%), chromium (95.50-96.50%), copper (98.90-99.90%), lead (99.90%), mercury (99.90%), selenium (98.20-99.90%), PFOA (99.90%), PFOS (99.90%), 50 VOCs (99.50%-99.90%) and several emerging contaminants, including trace pharmaceuticals, pesticides, and industrial chemicals (94.00-99.90%). Reduction rates are per the official performance data sheet.

Plus, it has extensive third-party testing to 100-400% filter life against NSF/ANSI standards 42, 53, 401 and other non-NSF/ANSI standards for nearly 200 contaminants – although some overlap may exist between certified and third-party tested contaminants.

Listed reduction rates include:

• Dozens of VOCs (99.90%)
• Dozens of semi-volatile organic compounds (99.90%)
• Dozens of pesticides, including herbicides and insecticides (77.70-99.90%; most 99.90%)
• 6 heavy metals: arsenic V (97.60-99.90%), cadmium (93.80-98.00%), chromium (95.50-96.50%), copper (98.90-99.90%), lead (99.90%), mercury (99.90%)
• Selenium (98.20-99.90%)
• Chloroform (99.90%)
• Other PFAS (99.90%)

Non-Potable Water

The Patriot Pure does not carry NSF/ANSI certifications or verified third-party testing for microbiological reduction (e.g., bacteria, cysts, or viruses). While the website claims the filter can trap “bacteria, viruses, cysts and other biological contaminants,” the Nanomesh filter manual explicitly states: “Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.”

3. Filtration Process

Patriot Pure’s Nanomesh filter comprises 3 filtration stages:

• Stage 1 is a sediment filter layer (mechanical filtration) which acts like a sieve to remove solid, undissolved particulates such as dirt or rust.
• Stage 2 is a proprietary carbon Nanomesh layer, which the manufacturer claims acts like a fibrous mat and carbon filter combined, removing particles as small as sub-nanometer in diameter including bacteria, viruses, and cysts.
• Stage 3 is a coconut shell carbon block core. Activated carbon removes things like bad tastes and odors, chlorine/chloramine, disinfection byproducts and other organics, as well as certain metals. In addition, the block structure provides fine mechanical filtration due to its smaller pore size compared to granular carbon.

4. Taste and Odor Test

In our test, the filtered water was odorless and had a perfectly clean taste.

Usability: 3.26/5.00

Please note: We conducted usability testing of this system using a single filter element, then normalized the results to two elements for better comparability with other tested gravity filter systems.

The Patriot Pure achieved a usability score of 3.26/5.00, based on its performance in the following categories:

1. Initial system assembly including filter priming (0.70/1.00)
2. Everyday use (2.36/3.50)
3. Filter replacements (0.20/0.50)

1. Initial Setup & Filter Priming: 0.70/1.00

Assembling the Patriot Pure system is easy. However, the simple instruction booklet is just one large sheet folded in half with a lot of text and only two illustrations. That said, there is a helpful tutorial video on YouTube to provide clarification if needed.

Here’s a quick breakdown of the setup procedure:

1. Wash the whole housing unit in hot, soapy water before first use.
2. Unscrew the plastic nut from the spigot assembly. Remove two of the three rubber gaskets, leaving one on the spigot.
3. Insert the spigot’s thread into the hole at the bottom of the housing base and screw on the remaining two rubber gaskets.
4. From the inside, twist the plastic nut until the two gaskets are flush and tight against the wall of the housing base.
5. Remove the screw from the black lid handle using a screwdriver. Push the screw through the hole in the lid from the inside. Twist the knob onto the protruding screw to finger tight.
6. Slip the rubber base onto the bottom of the lower chamber.
7. Fit the three rubber stoppers into the holes in the top chamber, pushing from the inside.

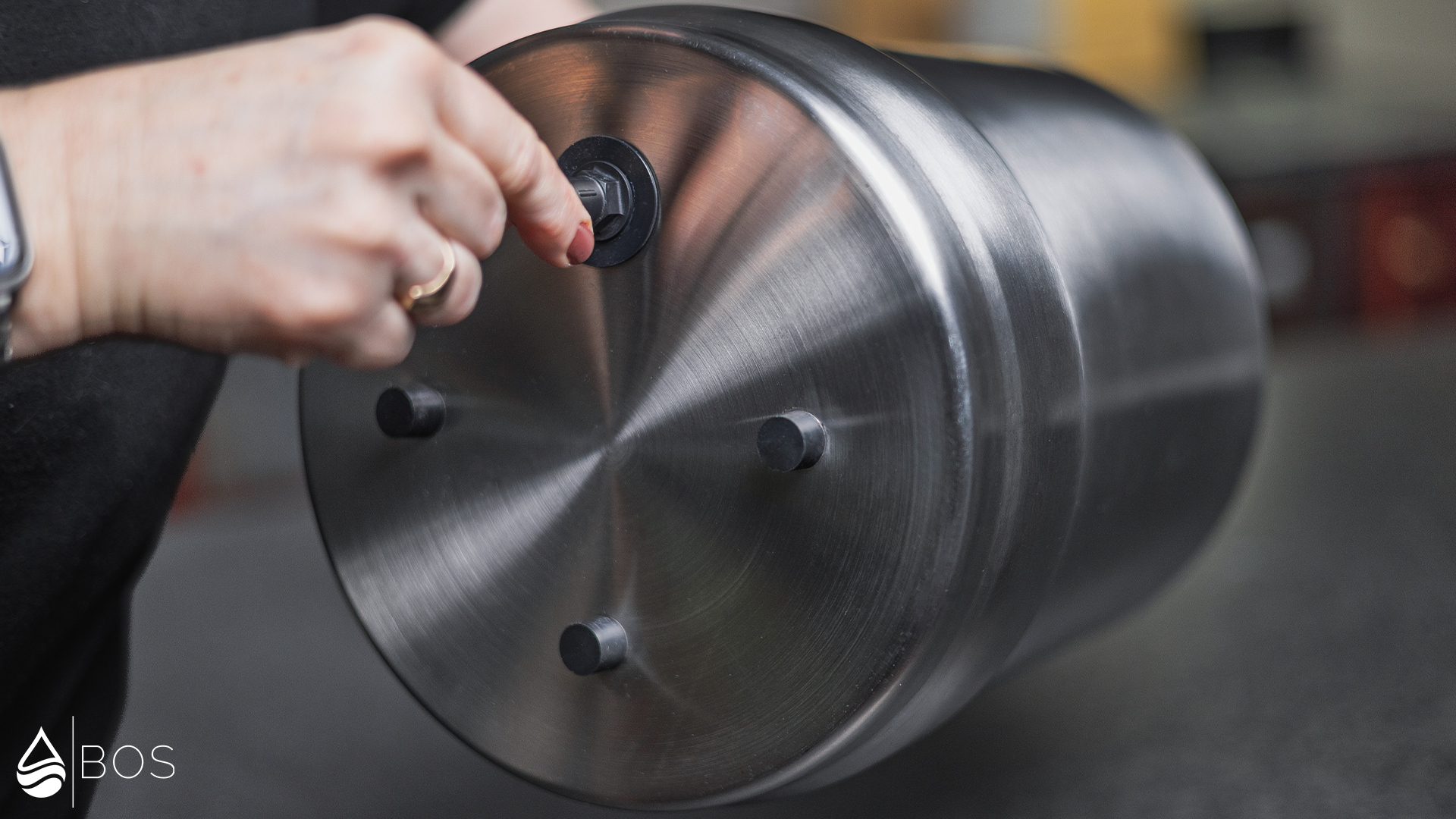

8. Add a rubber washer onto the threaded end of the black piece that came with the Nanomesh filter. Insert this threaded portion through the available hole in the upper chamber via the bottom side.

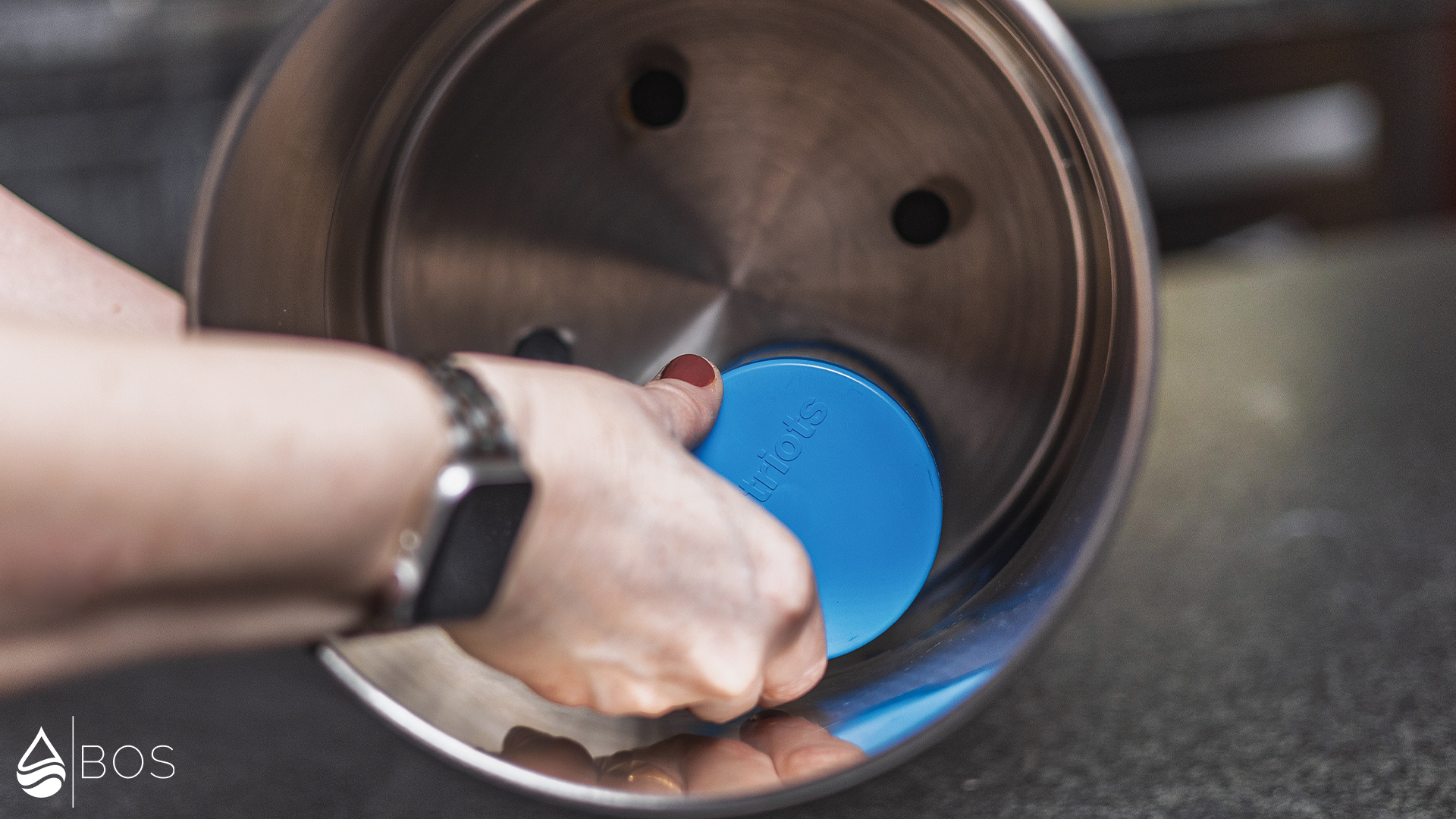

9. From inside the upper chamber, screw the Nanomesh filter onto this threaded tip to finger tight.
10. Repeat this process for any remaining filters, removing rubber stoppers to accommodate additional filters as needed.

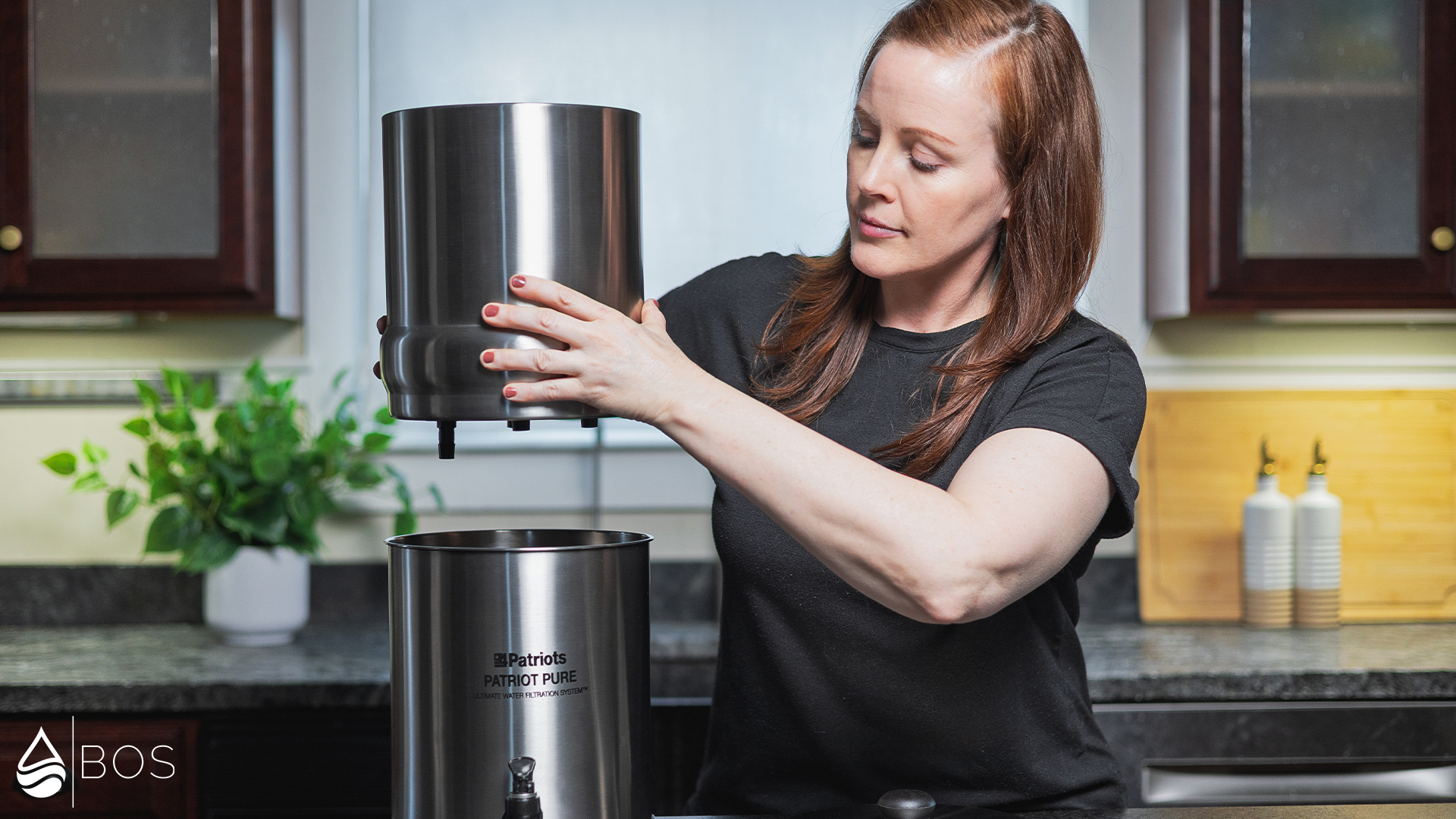

11. Place the upper chamber onto the lower chamber. Make sure spigot is in the closed position.
12. Fill the upper chamber with water, then cover with the lid.
13. Allow the system to fully process the water in the upper chamber to flush your filter(s). The first pass may be very slow – it’s recommended to allow it to run overnight.
14. Discard the filtered water and run 1-2 more full top chambers of water through the filters.
15. Wash bottom chamber after completing these flushes – now your system is ready to use.

2. Day-to-Day Use: 2.36/3.50

2.1 Speed & Water Capacity: 0.81/1.20

The Patriot Pure with two filters is generally suited for daily use. However, it’s too slow for on-demand filtering, which we define as 1 cup in <1 minute – it filtered and dispensed 1 cup in ~5:10 min and 4 cups in ~34:47 min in our filtration speed tests. While still not on-demand, performance would improve substantially with additional filters: the system can accommodate up to four elements in parallel, which would roughly double filtration speed relative to the two-filter setup tested here.

Importantly, the spigot sits above the bottom of the lower chamber, so the system must first process and collect ~49 oz of water over ~50:35 min before any water can be dispensed. Consequently, starting from an empty system, the total time to filter and dispense 1 cup was ~55:45 min, while dispensing 4 cups took ~1:25 hours. It took ~3:41 hours to fully filter and dispense the entire feed tank.

Assuming average US household sizes of 2.55-3.15 people, we estimate that 8-10 cups of water per hour would satisfy sudden thirst bursts. As configured in our testing, the Patriot Pure does not filter fast enough to keep pace with this demand. Yet again, performance would improve substantially with additional filters and readily facilitate the production of 10 cups per hour.

Dispensing filtered water from a full lower reservoir is fast – we measured about ~5.25 seconds for 1 cup.

The generous 1.74-gal (~27.8-cup) feed tank* and 2.00-gal (~32.0-cup) clean tank allow you to readily fill a 40-oz bottle or 2-quart pitcher from a single refill. Assuming 25.5–31.5 cups of daily water consumption for the average US households, we estimate 1–2 daily refills when filling the upper chamber to the top* – consistent with the other gravity water filters we tested.

However, actual refilling frequency will likely vary considerably depending on each household’s needs and preferences. Given the relatively slow filtration speed, most users likely would not want to wait until the feed tank is empty and the clean water fully depleted before refilling. Realistically, it is more practical to top off the feed tank at strategic times, such as before heading out to work or before bed, so the longer wait time is less disruptive. However, this requires some ongoing judgment from the user to ensure that the added feed water volume does not cause the clean tank to overflow.

2.2 Dispensing: 0.65/1.00

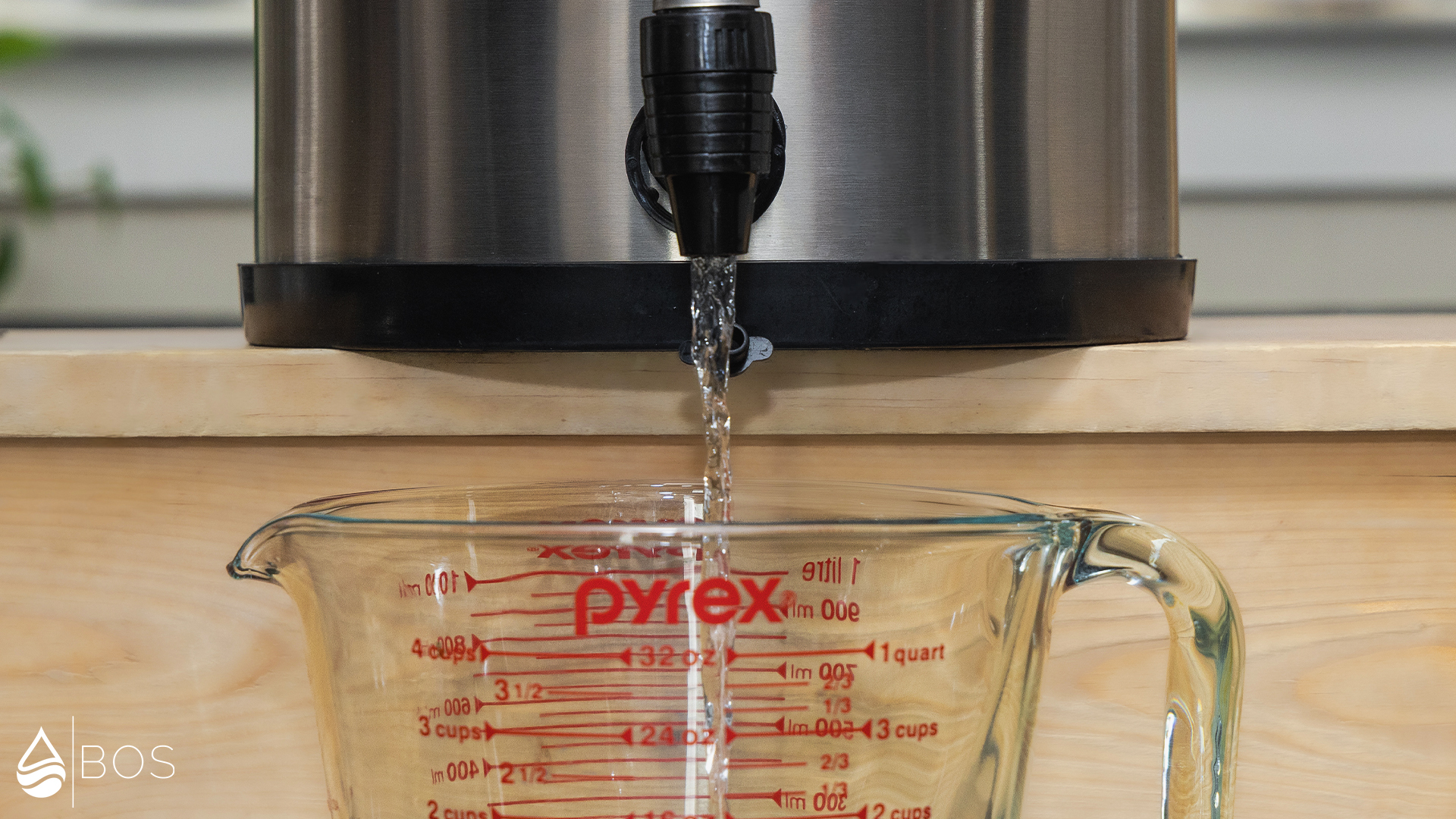

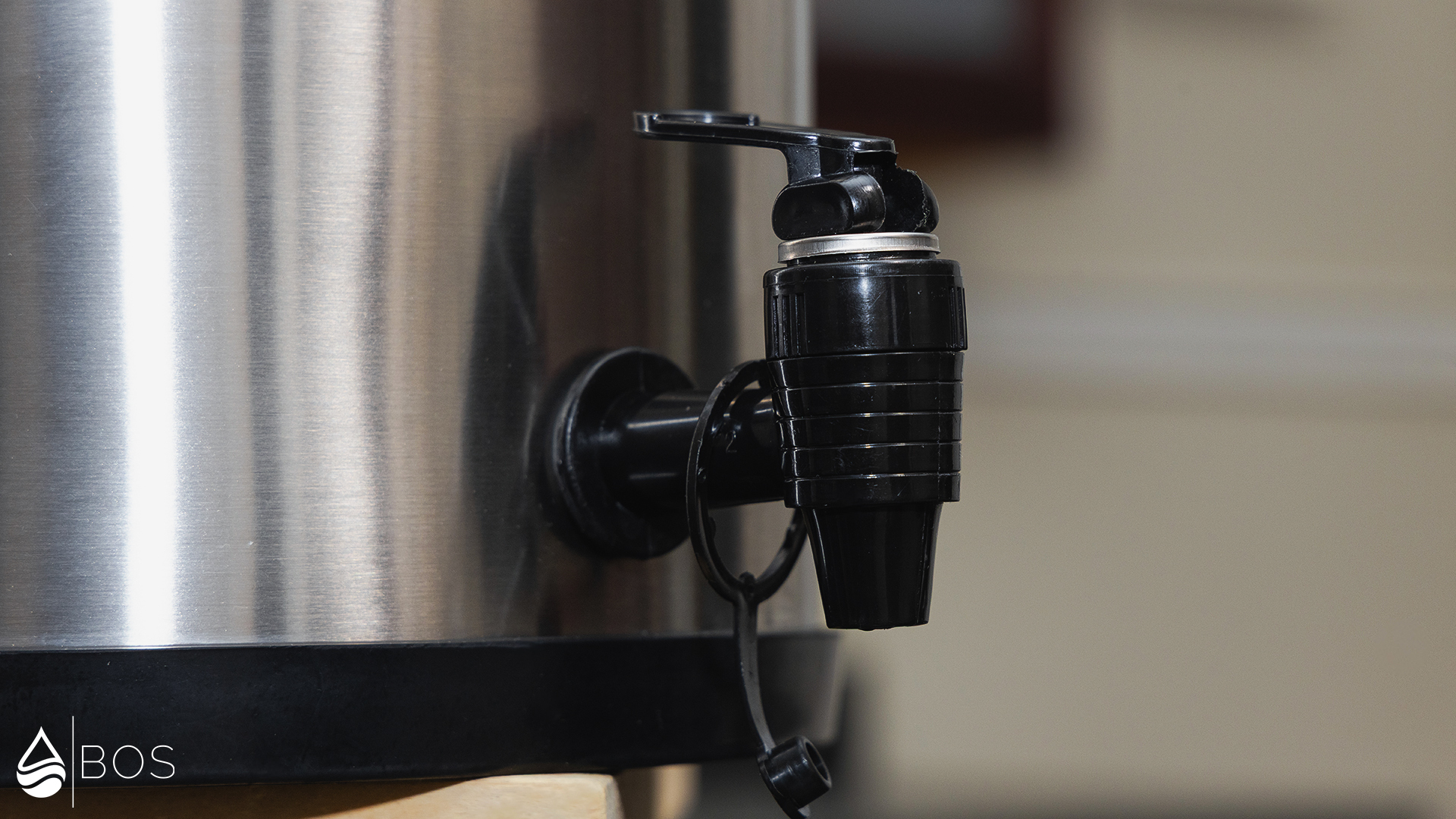

Using a full clean tank, dispensing water is fast and without splashing, even when opened to full flow. The all-plastic spigot is spring-loaded and pops back into place quickly, and there is no dripping after the pour. The attached spigot cover can help prevent leaks, but annoyingly, it also interferes with pouring.

Due to the spout height, the system must be placed at the counter edge to dispense, unless you use the optional tank stand sold by Patriot Pure – this gives you another ~6″ of clearance to fit a glass underneath. That said, you still won’t be able to fit a standard 40-oz bottle or 2-quart pitcher under the spout, even with the added height from the stand.

One downside: dispensing the last 49 oz of water requires additional steps. The spigot sits slightly above the base of the clean tank, which means the last ~6 cups of water cannot be poured unless you are tilting the tank forward or manually ladle out the remaining water. However, this is a common limitation and applies to almost all gravity filters we tested.

2.3 Refilling & Size: 0.60/1.00

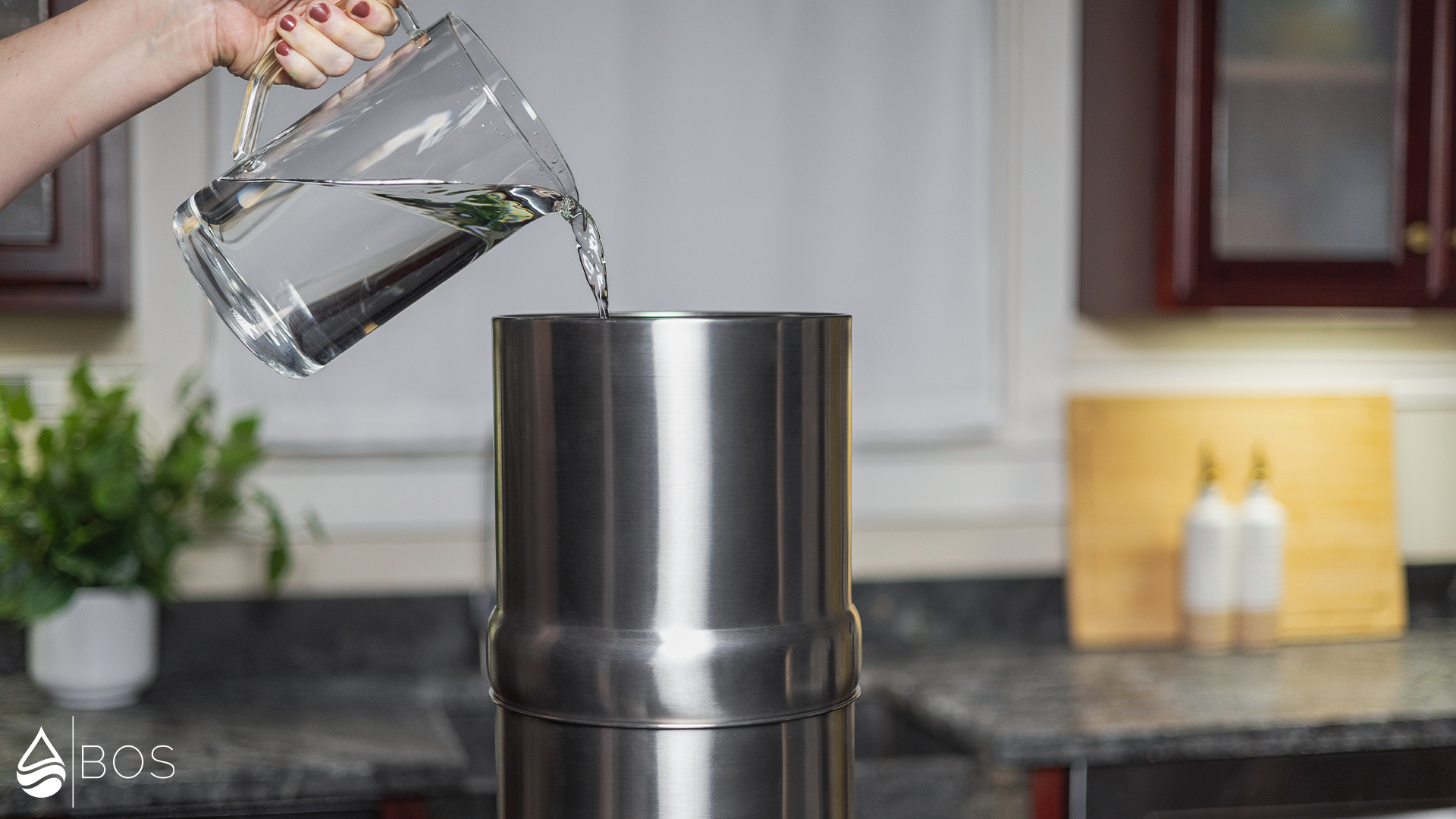

Refilling the Patriot Pure is straightforward. Simply use a pitcher or other container to fill the upper chamber with water. There are no max fill lines, however, and instructions do not specify a fill amount.

The included lid fits loosely but still keeps your feed water well covered.

As the Patriot Pure lacks a sight window or water level spigot to gauge the amount of water in the clean tank, you are required to lift the upper chamber to monitor the clean water level – a cumbersome task depending on how much water it contains.

Measuring 8.75″x19.2″x10.9″ (WxHxD) including the lid’s knob and spigot, the Patriot Pure doesn’t fit under most kitchen cabinets (18″ clearance). Additionally, using the optional tank stand further increases the height.

At 6.8 lbs with two wet filters installed (excluding the stand), its weight is about average for the gravity systems we tested. Its footprint is also about average, occupying ~60.13 in² (~0.42 ft²).

2.4 Other: 0.30/0.30

The Patriot Pure includes a rubber ring on the bottom tank, preventing scratching or sliding on your counter tops. Alternatively, the optional tank stand comes with rubber-gripped feet which also prevent unwanted movement.

2.5 Outdoor Use

The system seems sturdy enough for outdoor use, especially the stainless steel tanks – the plastic spigot is the most vulnerable component.

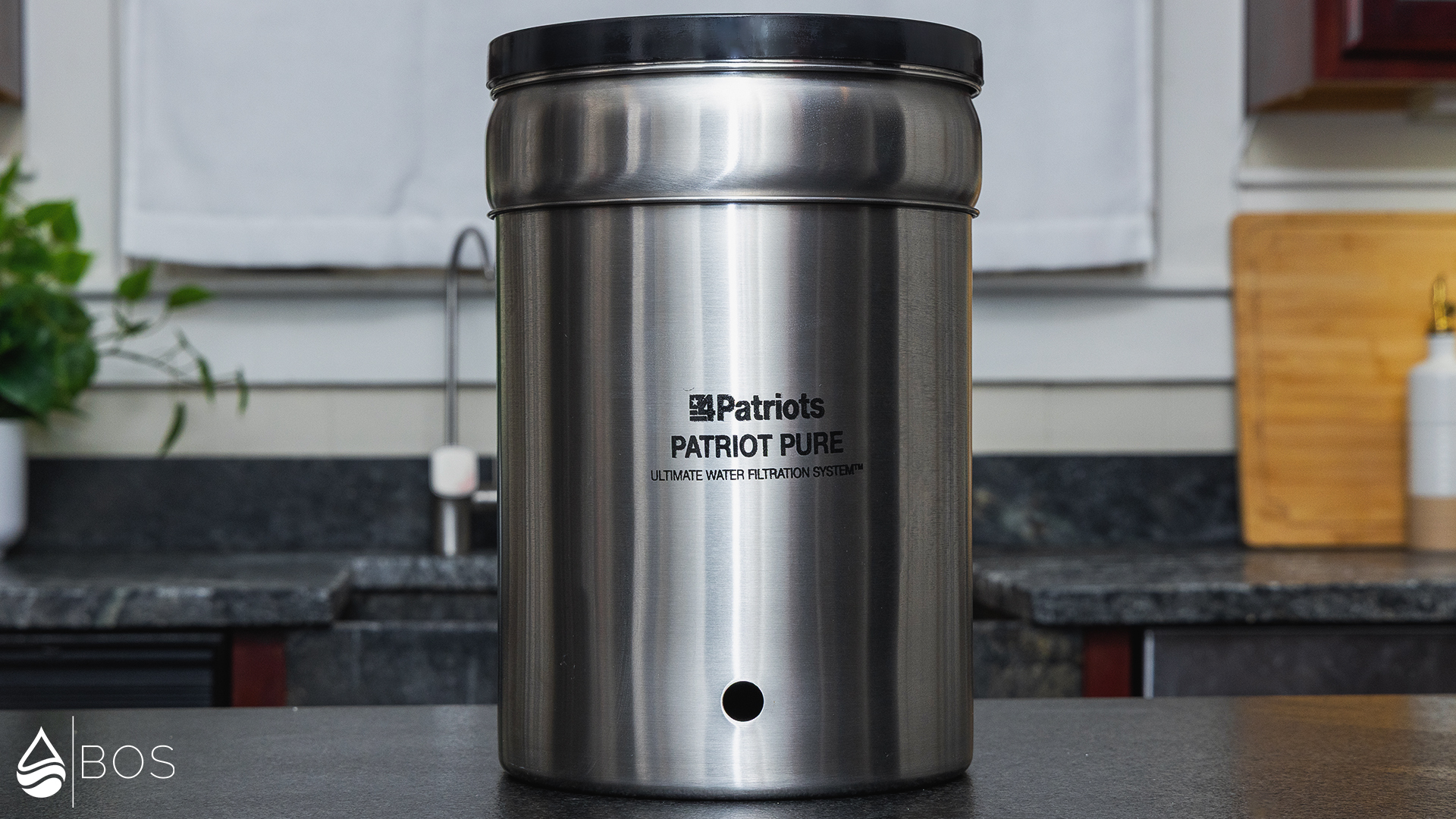

Its stowed size of 8.75″x13″x8.75″ (WxHxD; knob and spigot removed) and 6.8-lb weight (with two wet filters installed, excluding the stand) are comparable to competing systems, making it a reasonably portable option as well.

3. Filter Replacements: 0.20/0.50

Filter replacements are simple as the cartridges are easily accessible in the upper chamber. However, there is no filter change indicator to alert you when it is time to change them.

Rated filter life is 200 gal per filter element; 2 cartridges therefore have a combined water filtering capacity of 400 gal.

Assuming 500 gallons of yearly water consumption for the average household, we predict you will have to replace the filters in a 2-cartridge configuration 1-2x annually.

Costs: 4.45/5.00

Based on value for money, the Patriot Pure Ultimate Water Filtration System incl. optional tank stand and two Nanomesh filters achieved a cost score of 4.45 out of 5.00, indicating it is priced below average for what it offers compared to competing systems (a score of 4.00 represents average value). Notably, its upfront price is slightly below average and its annual filter replacement costs are well below average compared to the other gravity filter systems we tested.

1. Upfront Price

As of March 6, 2026, the Patriot Pure system including two filters is priced at $295.93. Adding the optional water tank stand ($49.95) brings the upfront total to $345.88, which is slightly below the $384.81 average across all the tested gravity filter systems.

2. Long-Term Expenses for Filter Replacements

Based on 500 gallons consumption and a 400-gal filter life for two filter cartridges, we estimate $165 in annual filter replacement costs, which is well below the $234.50 average across all the tested gravity filter systems.

3. Product Warranty

The Patriot Pure comes with a 1-year warranty and 90-day satisfaction guarantee.

4. Other Cost Factors

• No optional water level spigot to enable easy monitoring of clean water level.
• Minor rust formation from the earliest stages of use (around the rubber stopper hole).
• Nanomesh filters are claimed to be made in the USA.

Additional

1. Construction

The stainless steel tanks feel sturdy and well-built overall, though a minor amount of rust seems to have formed around one of the plugged holes after minimal usage. The all-plastic spigot works as expected but feels more susceptible to damage compared to stainless steel.

2. Design

The logo and system name on the lower chamber have the appearance of sticker lettering rather than metal embossing, giving it a cheaper appearance.

3. Frequent Customer Complaints

We read about issues with leaking, delayed or incomplete shipments, extremely slow filtration, poor customer service, or bad taste/odor of the filtered water.

We did not experience most of these issues firsthand, though we did find the Nanomesh filters to process water more slowly than some of its competitors.

Bottom Line: Most Effective Filtration but Lower Usability (4.10/5.00)

Filtration weighted at 60%, and usability and cost at 20% each, the Patriot Pure Ultimate Water Filtration System (old model) scored a final rating of 4.10 out of 5.00.

The Patriot Pure Nanomesh filter provided the most effective filtration out of all the tested gravity systems. It completely removed 9 contaminants in our lab tests, showed no signs of potential leaching, and produced filtered water that tasted and smelled perfectly clean. Plus, it has the most NSF/ANSI-certified contaminants by a wide margin, including many important ones (except germs), along with extensive third-party testing to 100-400% filter life.

However, its usability is less impressive: it’s pretty easy to setup though instructions could be better, and it filters plenty of water but does so fairly slowly. Maintenance is simple and overall build quality is good with durable stainless steel tanks, but we think we noted a small amount of rust forming early on. The plastic spigot does the job but feels like a weak spot, and its cover – though effective at preventing leaks – is a nuisance while dispensing. Plus, there’s no optional water level spigot or sight glass to help monitor clean tank reserves. Still, with slightly below-average upfront and well below-average ongoing costs plus a 90-day satisfaction guarantee, this is a solid gravity water system offering very effective filtration.
